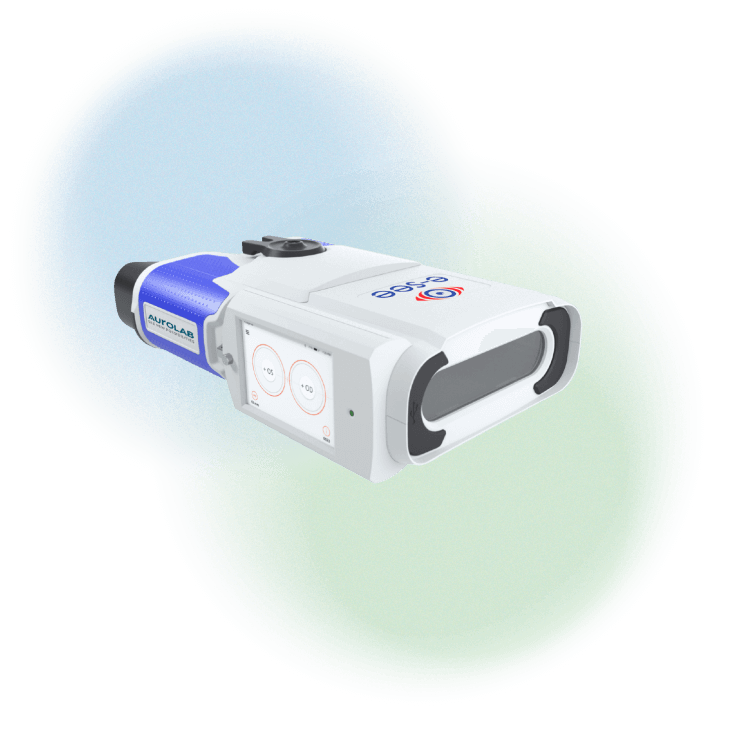

AUROLAB E-SEE MOBILIZING VISION
CARE WITH
PRECISION AND
PORTABILITY

esee
Product Specification :

Technology

Wavefront Aberrometry

Weight

1.4 kg

Accommodation Control

Open View

Measuring Wavelength

785 nm

Spherical Range

-10D to +10D, increments of 0.01D, 0.125D, 0.25D

Cylindrical Range

± 6D, increments of 0.01D, 0.125D, 0.25D

Axial Range

0-180°, increments of 1,5,10 degree

Interpupilary Distance Range

47 - 78 mm continuous

Device Dimensions

11x6.5x3.25 in (28x16.5x8.25 cm) / 1.4 kg

Intended Patient Population

5-85 years old

Dilation Required

None

Cyclopegic Requirements

None

Calibration Requirements

Factory Calibrated

Office Illumination Requirements

Works on i-Capture Pro software

Specialized Furniture Requirements

None

Storage/Transport

Travel hard shell case included

FDA Status

FDA listed

Data Acquisition

Video

Pupil Size

2 – 8mm

Laser Safety

Class I

Interfaces

Bluetooth

Materials

This product is latex-free

Battery Specifications

6–8 Hours of operation; 6 hours charge time (8 hours for initial charge)

Time per Measurement

10 seconds per eye

Optional Accessories

  • Bluetooth Printer

  • Re-chargeable, high-speed, compact, and lightweight thermal printer that works with the e-see via the Bluetooth port

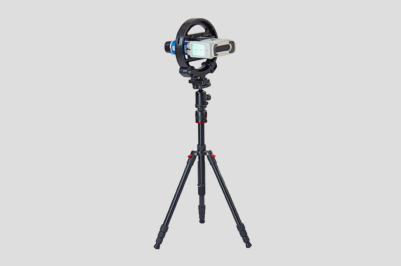

  • E-See Stand

  • Lightweight tripod with firm e-see holder, with rotatable and ring, and adjustable height.

Designed To Empower Eye Care Practitioners

  • Hand-held design for portability, allowing you to reach more patients

  • Open view design for easy alignment and focusing.

  • Wavefront aberrometer for detailed visual assessment.

  • Dynamic measurements for accurate results even in challenging conditions

  • Durable construction for reliable performance in various settings.

  • Intuitive touch screen for easy operation

  • Quick measurement values available in just 10 seconds.

esee
esee

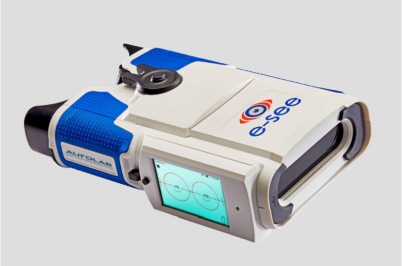

Experience Precision On The Go

With Aurolab e-see, eye care professionals can trust the accuracy of their measurements, ensuring optimal patient care and treatment recommendations.

Easy-to-use touch screen

With just a few taps on the screen, eye care professionals can navigate through the menu, adjust settings, and obtain measurement results

Comprehensive and Compact

The wavefront aberrometer technology provides detailed information on refractive errors, aberrations, and other visual parameters, allowing for a comprehensive assessment of a patient's visual needs. The open view design allows for easy alignment and focusing, ensuring accurate results everytime.

Portable And Exceptionally Accurate

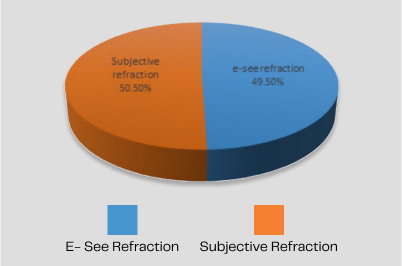

Patients preference to glass prescription

esee
esee

e-see made the glass prescription simpler and accurate in low resource settings.

- AAO Journal

Empowering Vision Care For Better Eye Health For Everyone

Aurolab's comprehensive range of diagnostic solutions and devices are meticulously designed to provide eye care professionals and patients with access to advanced vision care and treatment options.

Plenoptika Wre Technology

  • A high-caliber autorefractor designed and developed by the Massachusetts Institute of Technology spin-out (Cambridge, USA), PlenOptika, Inc.

  • e-see offers ease of use and accuracy with its Wavefront Refraction Engine (WRE) Technology.

  • This device with cutting-edge technology ensures that the testing process is dynamic, smart, and intuitive, offering the closest results to subjective refraction as compared to conventional autorefractors.

  • The WRE technology was developed with the support from

esee

Other Significant Advantage

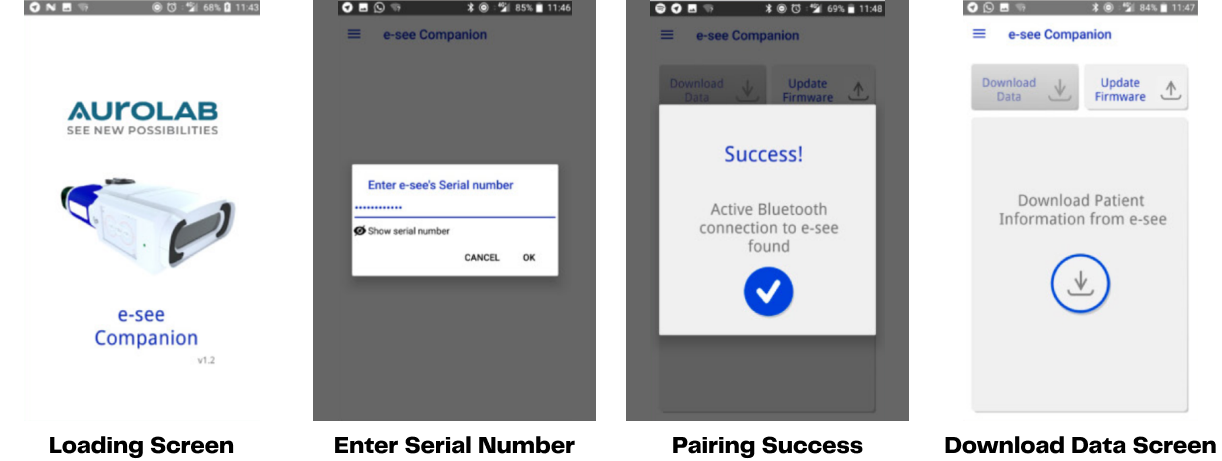

  • E-see companion mobile app

  • This app works on Android devices and can be used to maintain patient details and also do necessary firmware updates to e-see whenever available

  • Easy to align

  • Accurate eye testing even when the patient is blinking

  • The smart algorithm takes in more data, which ensures better results

Installation Of The App

Download the application and then connect it to the relevant devices via bluetooth. Once that is done the application will allow the user to either download patient data or to update the firmware.

esee

Portable and Precise

Unlike traditional auto refractometers, e-see measures the eyes dynamically, capturing changes in the eye's optical properties in real-time allowing more reliable results, even in challenging situations with high accurate wave front aberrometry technology. Its compact and lightweight design makes it easy to carry in the bag making it ideal for use in remote or mobile eye care screenings

Reliable results in just 10 seconds

Aurolab e-see allows eye care professionals to conduct vision screenings in a timely manner, maximizing their productivity and throughput. The fast measurement speed of e-see makes it suitable for high-volume screening sessions, such as in schools or vision camps, where time is of the essence.

AUROLAB e-see : Designed To Maximize Reach

esee
hospital

Hospitals and Clinics

Conduct precise and efficient in testing for patients while at waiting bay hospitals and clinics.

camps

Vision Camps

Utilize Aurolab e-see in remote or mobile vision camps to reach new demographics and provide comprehensive eye care services.

school

Schools

Take vision care to school children. Test for school-age children for refractive errors and other visual abnormalities, ensuring optimal visual health.

vision center

Vision Centers

Enhance the capabilities of vision centers with e-see for efficient eye-testing and prescription recommendations.

eye

Home Eye Testing

Conduct doorstep optical tests for patients who are unable to visit a clinic or vision center and neighborhood vision screening drives.
