diagnostic

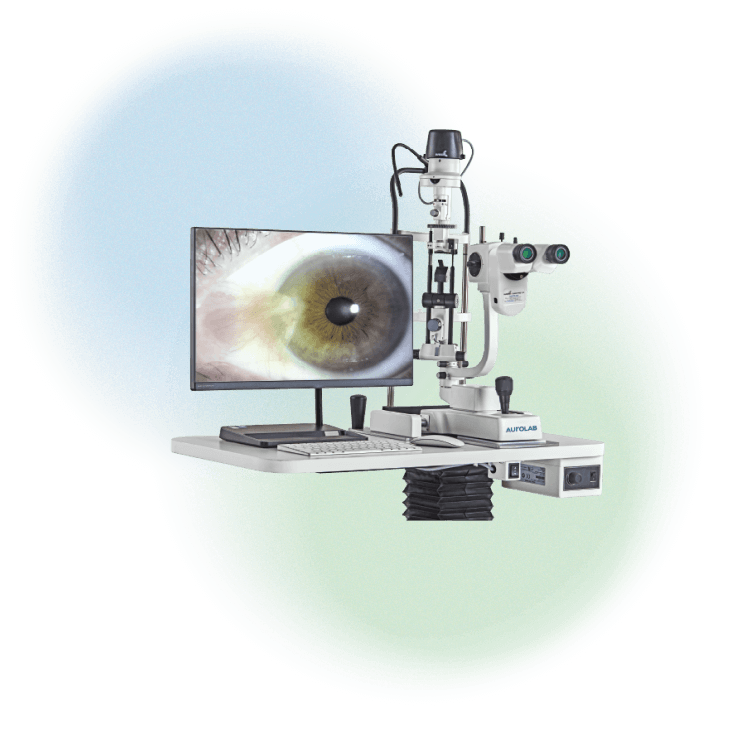

SLIT LAMP
IMAGING SYSTEM
ELEVATE YOUR
DIAGNOSTICS

hawki

Integrated Imaging System for Enhanced Visualization and Patient Education:

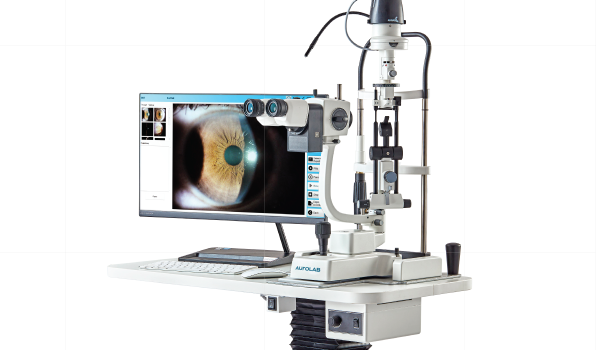

Slit Lamp imaging system

  • High - Resolution Imaging: Both Hawk-i CAM (13MP) and Third-i Camera (8MP) capture crisp visuals for detailed

  • Beam Splitter Integration: Cameras seamlessly integrate with the slit lamp, capturing images without interrupting the examination flow

  • Click - type Joystick (Hawk-i CAM) : Enables effortless image capture for improved workflow efficiency

  • i - Capture -Pro Software: Provides comprehensive image management tools, including organization, annotation, report generation, and DICOM export.

  • AIOC Photography awarded Third-i Camera: Award-winning camera ensures superior image quality and color fidelity.

hawki

Hawk-I Cam FHD 3.0 Specification

Specification :

Camera resolution

13 Mega pixel 4208(H) x 3120(V)

Sensor image area

6.18mm x 5.85mm

Frames per second

60

Video recording resolution

1920 x 1080 / 1280 x 720

Video recording format

AVI

Still image format

JPEG

Connectivity

USB 3.0

Automatic camera control support

AEC, AGC, AWB

Lens focal length

50mm FL

Beam splitter ratio

80/20

Trigger / Snap button

USB type foot switch or joystick

Power supply

DC5V, 150mA~300mA

Operating System

Windows 7/8/8.1/10

Software

Works on i-Capture Pro software

Slit Lamp Compatibility

Hawk-I slit lamp

Tech Specifications :

HAWK i - B2 HAWK i -T 2 HAWK i -B 3 HAWK i -T 3 HAWK i -B 5 HAWK i -T 5

Microscope

Galilean

Galilean

Galilean

Galilean

Galilean

Galilean

Magnification

10x, 16x

10x, 16x

10x, 16x, 25x

10x, 16x, 25x

6.5x, 10x, 16x, 25x, 40x

6.5x, 10x, 16x, 25x, 40x

Eye pieces

10x, 12.5x (Optional)

10x, 12.5x (Optional)

WF 12.5x / 18 mm, diopter adj. ± 5 mm

WF 12.5x / 18 mm, diopter adj. ± 5 mm

WF 12.5x / 18 mm, diopter adj. ± 5 mm

WF 12.5x / 18 mm, diopter adj. ± 5 mm

IPD range

49 - 80 mm

49 - 78 mm

49 - 78 mm

49 - 78 mm

49 - 78 mm

49 - 78 mm

Slit length/Width

0 - 14 mm continuous

0 - 12 mm

0 - 13.5 mm

0 - 12 mm

0 - 13.5 mm

0 - 12 mm

Slit apertures

1.1, 2, 3, 5, 8, 10 & 14 mm

0.3, 1, 3, 5, 9, 12 mm & continuous 1.5 to 12.0 mm

0.6, 5.8, 9, 13.5 mm & continuous 1.5 to 12.0 mm

0.3, 1, 3, 5, 9, 12 mm & continuous 1.5 to 12.0 mm

0.6, 5.8, 9, 13.5 mm & continuous 1.5 to 12.0 mm

0.3, 1, 3, 5, 9, 12 mm & continuous 1.5 to 12.0 mm

Slit rotation

0 - 180 °

0 - 180 °

0 - 180 °

0 - 180 °

0 - 180 °

0 - 180 °

Slit tilt

-

20°

-

20°

-

20°

Filters

Red free, Cobalt blue

Red free, Cobalt blue, Heat absorbing, Neutral density

Red free, Cobalt blue, Heat absorbing

Red free, Cobalt blue, Heat absorbing, Neutral density

Red free, Cobalt blue, Heat absorbing

Red free, Cobalt blue, Heat absorbing, Neutral density

Illumination

6 V, 20W, Halogen bulb

6 V, 20W, Halogen bulb

6 V, 20W, Halogen bulb

6 V, 20W, Halogen bulb

6 V, 20W, Halogen bulb

6 V, 20W, Halogen bulb

Movement Ranges

3 V, 5W LED

3 V, 5W LED

3 V, 5W LED

3 V, 5W LED

3 V, 5W LED

3 V, 5W LED

Longitudinal (In/ out)

80 mm

80 mm

100 mm

100 mm

100 mm

100 mm

Lateral (Left/ right)

109 mm

109 mm

107 mm

107 mm

107 mm

107 mm

Vertical (Up/ down)

30 mm

30 mm

30 mm

30 mm

30 mm

30 mm

Chin range

70 mm

70 mm

80 mm

80 mm

80 mm

80 mm

Table base size

545 mm × 365 mm

545 mm × 365 mm

545 mm × 365 mm

545 mm × 365 mm

545 mm × 365 mm

545 mm × 365 mm

Weight

25 kg (packed)

25 kg (packed)

28 kg (packed)

32 kg (packed)

28 kg (packed)

32 kg (packed)

Optional accessories

Tonometer mount,Tonometer, Beam Splitter with Camera, Imaging Software, Diuser, Motorized Table

MotorizedTable, ApplanationTonometer, HD Camera

Third-i

  • Capture crisp visuals with the 8MP beam splitter camera for documentation and follow-up.

  • Benefit from the intuitive i-Capture software for efficient data management and analysis.

  • Offer a premium experience with AIOC photography awarded technology.

Third i Camera Specifications

Resolution

8 Mega pixel (3264 (H) × 2448 (V))

Lens focal length

50 mm

Sensor image area

6.18 mm × 5.85 mm

Beam splitter ratio

80/ 20

Frames per second

30

Foot switch

USB type switch for capturing images

Video recording resolution

1280 × 720

Power supply

USB BUS Power/ DC 5V, 150 mA ~ 240 mA

Video recording format

AVI

Supports

Windows 7/ 8/ 8.1/ 10

Still image format

JPEG

PC requirements

Minimum Dual Core 2.0 Ghz / 4 GB RAM, 500 GB Hard disk

Connectivity

USB 2.0

Monitor resolution

1366 × 768 minimum

Autocameracontrol support

USB 2.0

Monitor resolution

1366 × 768 minimum

Compatibility

Device is compatible with Hawk-i slit lamps
hawki

Streamlining eye care diagnostic with unmatched precision

From routine checks to complex examinations, our technolog simplifies diagnosis and prognosis verification. Renowned for over a decade for their accuracy, efficiency, and durability, the HAWK-I slit lamps incorporate groundbreaking technology for impeccable precision in both design and operation. User-friendly for professionals and comfortable for patients, our range of slit lamps and accessories allows you to tailor a diagnostic setup that perfectly aligns with the needs of your eye care practice

Apochromatic Optics:

Minimizing Aberrations for Exceptional Eye Detail

Aurolab's advanced slit lamps feature built-in apochromatic optics, a technology that actively minimizes both chromatic and spherical aberrations. This innovation allows for an exceptionally clear and precise view of not only the anterior and posterior segments of the eye but also the intricate structural details.

Hawk-i :

Empower Your Practice With 12 Versatile Slit Lamp Models.

Aurolab's high-power slit lamp biomicroscopes offer flexibility in illumination, magnification, and light sources—choose between modern LED or traditional halogen.

Additionally, each slit lamp supports 7 specialized integrations to enhance your diagnostic capabilities. Capture high-quality images and videos for comprehensive exam reports, enabling patient education, teaching, and publishing

hawki

Extraordinary Versatility

Perhaps the most significant quality of the HAWK-i system is that it boasts an elaborate array of accessories, attachments, and lens integrations which can amplify your output, as well as your results. These include:

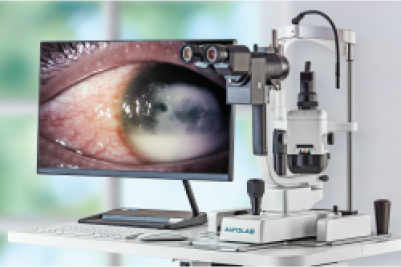

Slit Lamp imaging system

hawki

TAILOR YOUR DIAGNOSTIC SETUP HAWK-i :

OFFERS SCALABLE AND MODULAR INTEGRATION

HAWK-i's modular design empowers professionals to create a diagnostic setup that aligns perfectly with your practice's space and specific requirements. Whether you opt for a simple or complex configuration, experience Aurolab's renowned high-quality imaging with lifelike resolution.

This ensures precise diagnosis and seamless documentation, regardless of the model you choose.

hawki
hawki
hawki

Exemplary Perfomance

HAWK-i, equips your practice with a comprehensive suite of superior imaging modules, precise image editing software, and an advanced patient management system.

Our slit lamps are engineered for precision and durability, featuring specially coated with Max lite coating that resist fungus, fog, and scratches while minimizing light reection.

Exceptional Optics

HAWK-i boasts a powerful array of advanced microscopes that provide high-resolution views and detailed videos.

Its optical transmission ensures high-resolution imaging for all types of eye exams, from routine to complex cases with meticulous detail. With binocular stereoscopic views, varied illumination, and magni cation options, professionals are equipped with a reliable system at every step of patient's vision care journey.

Apochromatic Optics guarantees true-to-life colors with high contrast, ensuring accurate diagnosis.
