AUROLAB
EV GOLD
TRANSFORMING
VISION, ENSURING
PROTECTION

evgold
evgold

Preloaded for Precision

Aurolab EV Gold IOL delivers an even higher degree of safety by savingsurgeon time and eliminates the loading error. The lens is untouched by human hand, right from its production to its unpacking during the implantation.

Technical specifications

Design Characteristics
Optic Dimeter 6.0mm
Overall Length 12.5mm
Optic Design Apodized Diffractive Aspheric
Haptics Design Force Enduring Haptics

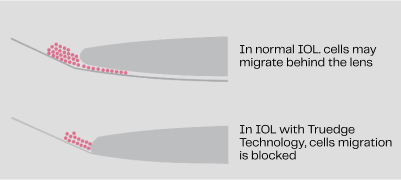

Square Edge 360° Truedge
Convexity Biconvex
Angulation 3° Angulation
A Constant 118.7 (Optical)
ACD Value 5mm
Dioptre Range Available 10D to 15D in 1D increments
15D to 25D in 0.5 increments
On Request basis 0.0D to 10.0D
25.0D to 40.0D
Delivery System Disposable Preloaded injector and cartridge with 2.8mm incision
Material Characteristics
Lens Material Hydrophobic acrylic
Glass Transition Temperature 8°C
10% UV Cut-off 385nm
Light Transmittance More than 90%
Refractive Index 1.47

Introducing the EV Gold

A Preloaded, Hydrophobic Yellow Chromophore negative aspheric IOL Revolutionizing Eye Care. This innovative lens not only filters harmful blue light, protecting the retina, but also significantly reduces the risk of posterior capsule opacification. The EV Gold ensures exceptional performance for both surgeons and patients, enhancing safety and outcomes during and after cataract procedures.

evgold

Innovative In Material

To deliver a revolutionary IOL, Aurolab began from the ground up, creating the proprietary hydrophobic Aurovue that enables great comfort and sharp vision across focal distances for the patient, while remaining easy to handle for doctors. As a result Aurolab EV Gold delivers the highest optical clarity among IOLs.

evgold
Feature Aurovue Alcon J & J

Transmittance

92%

91-92%

92%

Clarity

> 99%

NA

NA

Haze

< 1.5%

NA

NA

ABBE Number

55

37

55

Glistening

Nill

NA

Nill

Tg (°C)

8

15

14

Bio Adhesion

High

High

High

Refractive Index

1.47

1.55

1.47

E&O.E Ref: Based on respective product information and company data. NA: Data notavailable *Ref..Internal study Lower the ABBE number, higher the colour dispersion which will result in failure of the lens to bringall wavelengths of all colour to the same focal point

Enhanced Performance

Enhanced performance, powered by advanced technology Integration

A negative spherical aberration of -0.15u is provided to enhance depth of focus and contrast sensitivity in mesopic and scotopic condition.

Innovative Yellow Material: The yellow material of the IOL filters out harmful blue light and prevent retinal damage.

Optimized 3* Vault Angulation: A precise 3' vault angulation ensures optimal adaption of the IOL to the posterior of the capsular bag. enhancing the effectiveness of the lens placement.

Robust Haptic Design: The force-enduring haptic design provides excellent stability and centralization of the IOL, aiding surgeons in precise lens positioning.

evgold

Introducing the EV Gold

A Preloaded, Hydrophobic Yellow Chromophore negative aspheric IOL Revolutionizing Eye Care. This innovative lens not only filters harmful blue light, protecting the retina, but also significantly reduces the risk of posterior capsule opacification. The EV Gold ensures exceptional performance for both surgeons and patients, enhancing safety and outcomes during and after cataract procedures.

Better Outcomes

This advanced IOL, featuring Aurolab's proprietary glistening-free optic, minimizes light reflectivity for more predictable post-surgery refractive outcomes.

The IOL's material, mirroring the natural lens with a refractive index of 1.47 and an Abbe number of 55, optimizes vision quality and color perception. Additionally, its negative aspheric optics enhance contrast sensitivity, particularly in low light, ensuring improved vision for patients at all times

evgold

These industry topping parameters make Aurovue an outstanding material for IOL use in addition to its

  • Excellent bio adhesion

  • Glistening free optic

  • Low chromatic aberration

  • Low Tg ('C) ( glass transition temperature)

  • Controlled unfolding

  • High bio compatibility
