aurolase 532
green laser
photocoagulator

Specification

TREATMENT LASER PARAMETERS
Laser	Frequency doubled diode pumped solid state Laser
Wavelength	532nm
Laser Power at delivery end (max.)	1W
Laser Safety Class	Class IV
Treatment Laser power	25 mW-1000 mW
Pulse duration	50 ms - 1000 ms
Pulse interval	OFF, 50 ms-1000 ms (OFF - for single shot)
AIMING LASER PARAMETERS
Laser	1 mW, Red Laser diode
Wavelength	635±5 nm
Intensity	<1 mW, Variable in 10 steps
Laser Safety Class	Class II
Fiber Port	SMA 905
Temperature	Transport: 10-70 °C
Temperature	Operating: 15-35 °C
Cooling System	Thermo-electric & Air cooling
Display unit	1920 x 1680-11.6" Touch Display IPS FHD wide angle viewing
POWER SUPPLY
Input Voltage	90-240 VAC, 50/60 Hz
Power Consumption	300 Watt
Foot Print	H 450 XW 145 X D 450 mm (Laser system only)
Weight	~10 kg
DELIVERY SYSTEMS
Standard	Slit Lamp Adaptor, Laser Indirect Ophthalmoscope
Optional	Endoprobe
Standard Accessories	Touch Monitor, Foot switch, User manual, Safety goggles, Hand rest and Carry case (Optional)

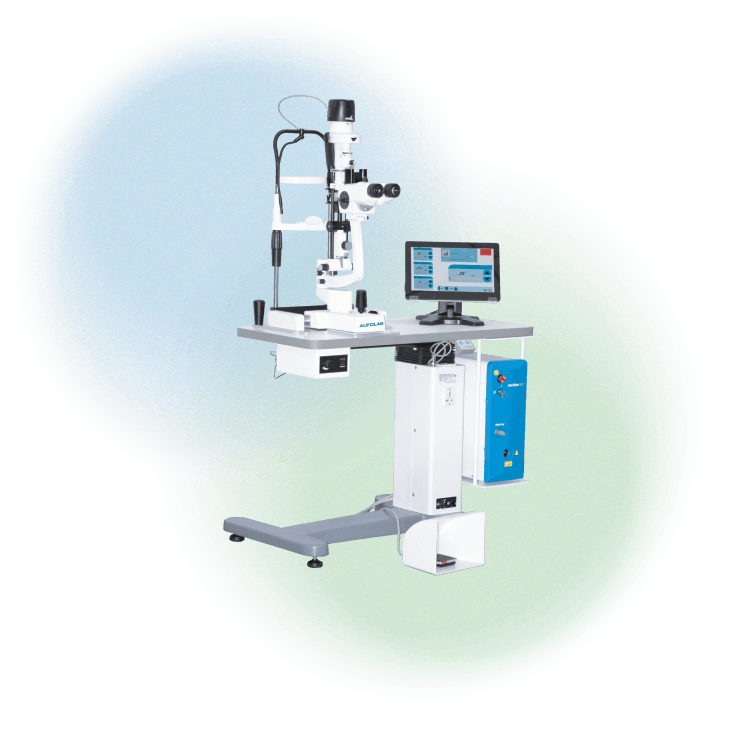

Aurolase532 is a compact high power Green 532nm Laser system designed for retinal photocoagulation in OPD & OT

Precise, economically efficient, consistent and stable performance
New laser workstation offers you more space to work and convenience
Smart delivery system detection
Highly responsive and instant power delivery
True color Laser safety filter in all delivery systems with natural color rendering and
promising safety to surgeons
High power laser head for extended life time

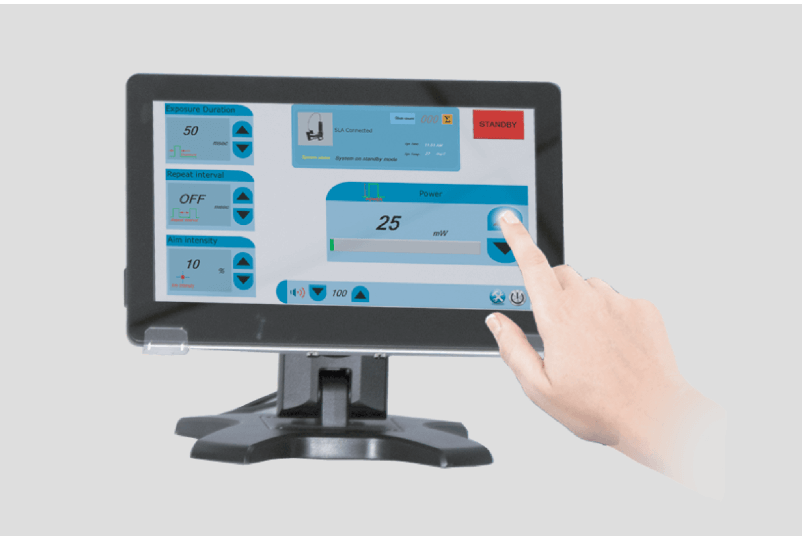

Custom positioned wide touch screen display offer better visibility even in dark room condition
Easy to operate, all parameters in one screen

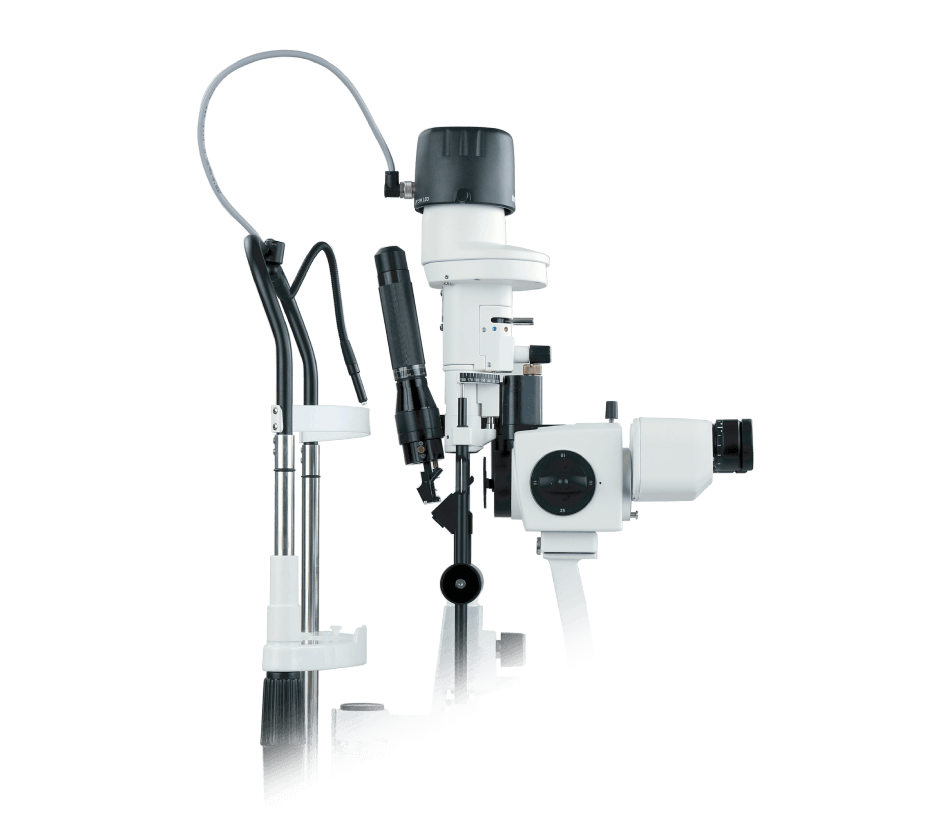

Slit Lamp Adapter
Spot size	Continuously variable spot size from 50 to 500 micron
Safety Filter	Clear laser safety filter for surgeon's eye protection
Adaptable Slitlamps¹	Hawk -i Slitlamp, most top and bottom illuminated
Standard Accessories	Fiber optic cable, Tonometer mount for adaptor

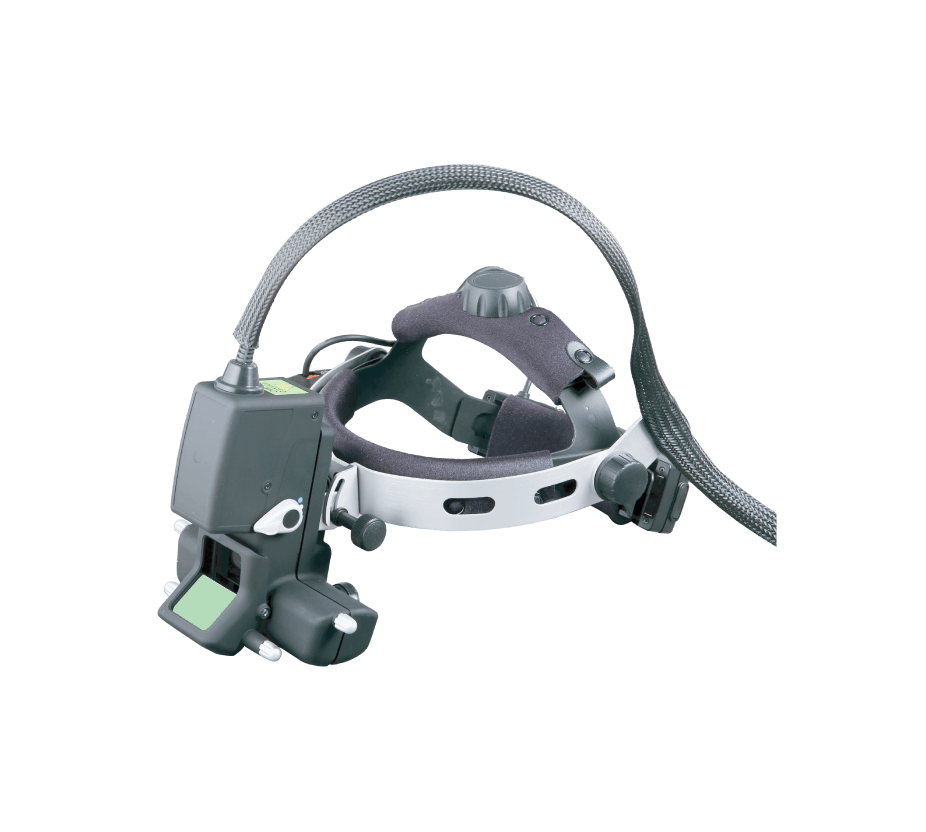

Laser Indirect Ophthalmoscope
Indirect ophthalmoscope	Keeler Vantage Plus
Illumination	Enhanced LED rendering natural color with seamless 90 minutes battery back up
Spot Size	1100 um
Working distance	280mm ±20%
Safety Filter	Clear laser safety filter for surgeon's eye protection
Standard Accessories	Wall mounted wireless charger, spare battery Fiber optic cable (5m),

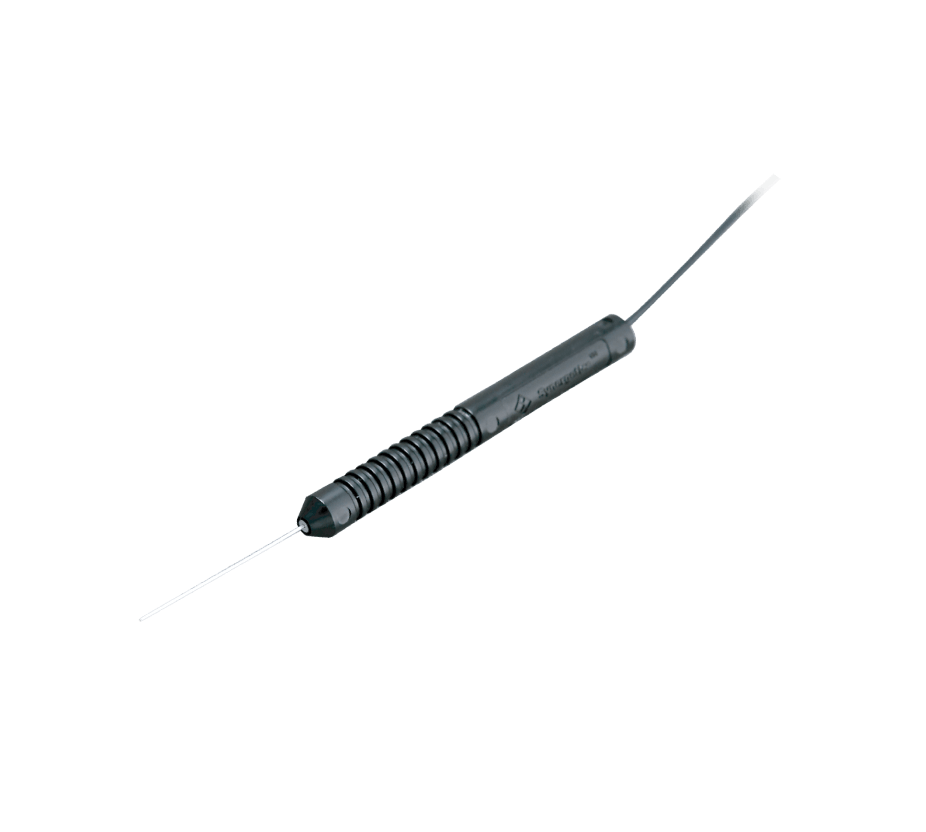

Endoprobes
Endoprobe gauge	20G, 23 G & 25G
Variants	Straight, Angled & Directional

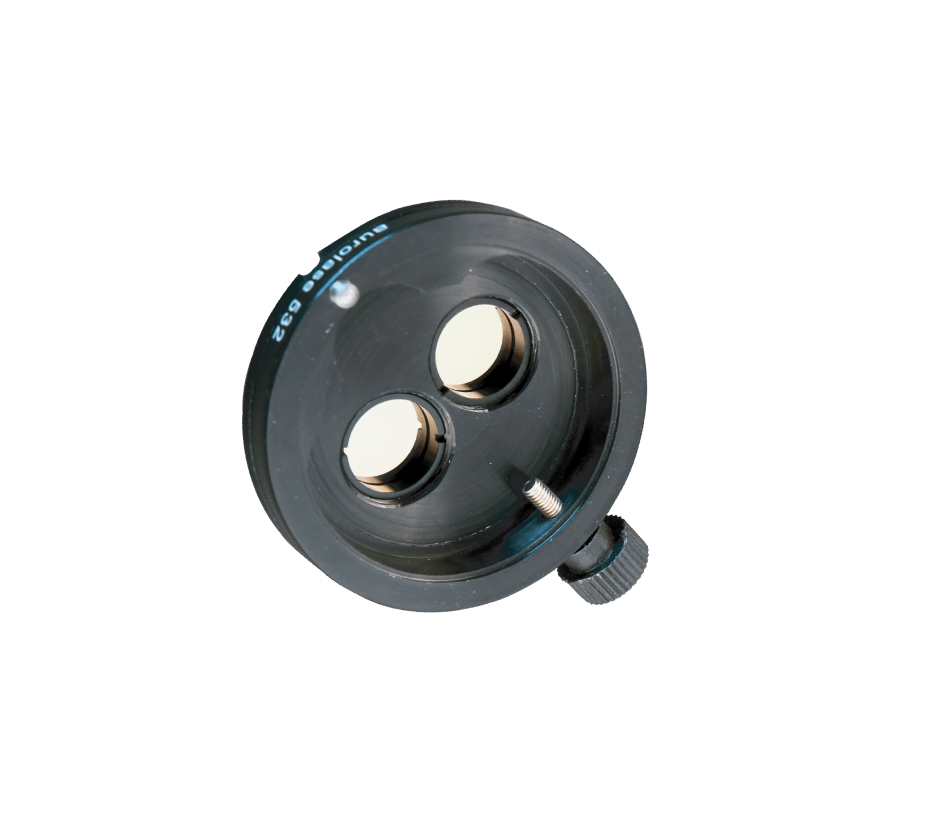

Microscope Safety Filter
Adaptable Microscopes¹	ZEISS Models: OPMI-1 FR PRO, OPMI-1 FR, OPMI-1FC, LUMERA I, LUMERA-700, OPMI-MDO, OPMI-MDO XY, VISU-160, OPMI - PICO, VISU-200, VISU-210, OPMI-1
Adaptable Microscopes¹	LEICA-F12
Safety Filter	Clear laser safety filter for surgeon's eye protection

Volk Lenses: Super quad 160, Area centralise, 90D, 20D, 3 mirror Gonio lenses & other lenses if needed
