surgical

AUROLAB
HUMMINGBIRD
LITE

THE INTELLIGENT
AND INTUITIVE
PHACO MACHINE

hummingbird
hummingbird

Seamless support at
your Fingertips

Our dedicated support network is ready to assist, train, and empower you in managing and optimizing your Hummingbird Lite device. We offer proactive maintenance programs, technical support, and comprehensive training to ensure your staff is proficient in operating and harnessing the full capabilities of Hummingbird Lite

Specifications

Console
Dimensions
Height 24 cm (9.4 Inches)
Breadth 49.2 cm (19.37 Inches)
Length 37 cm (14.56 Inches)
Weight
Unpacked 13 Kg
Packed 23 Kg
Environmental Limitations
Operating Altitude 3,048 meters (10,000 feet)
Temperature 10°C to 35°C (50°F to 95°F)
Relative Humidity 10% to 95% without condensation
Electrical Requirements 100 - 240 VAC, 50/60 Hz, 450 watts
Maximum Input Current 2A
Protection Against Electric Shock Class II
Classification of all Applied Parts Type BF
Data Card MMC (Multimedia Card), or SD (Secure Digital) 32 MB min
Performance Specifications
Phacoemulsification
Submodes Pulse, Continuous
Tip Stroke max length 120 UM
Resonant Frequency 38 to 42 kHz
Pulse Rate Range 1-30 pulse / second (depending on % Time On)
Anterior Vitrectomy
Submodes Cut I/A, I/A Cut
Cut Rate upto 1200 cuts/min
Diathermy
Types Bipolar generator
Operating Frequency 2.2 MHz | Max Power : 15W
Vacuum & Aspiration
Vacuum 0 to 600 mmHg
Aspiration 0 to 60 ml/min
Pump Peristaltic
Irrigation
Gravity fed fluid delivery Manual
Manual infusion pole 3.25 kg
Foot Pedal
Multifunction Foot Pedal 4 kg
Length 11.41 cm
Height 5.51 cm
Trolley
Light Weight ergonomically designed trolley for better mobility Trolley Weight 22 Kg

Aurolab’s extensive portfolio of expertly engineered solutions in diagnostic, surgical, therapeutic and lens technologies are here to enhance your mission for successful outcomes.

Accessories

Phaco Handpiece
Phaco tip* - 2.2mm, h2.8m
Kelman*, straight*, turbo tip* (30°, 45°)
Phaco sleeve
Phaco test Chamber
Aspiration Tube
Disposable Sensor and Irrigation Tubing Set Coaxial and Bi-manual I/A Handpieces*
Anterior Pneumatic Vitrectomy Cutter Diathermy Pen and Forceps*

* Optional. Not part of standard machine

Versatility You Can Rely On

The Hummingbird Lite Phacoemulsification Machine redefines cataract surgery, offering an all-in-one solution for both simple and complex procedures.

With unparalleled stability and precision, this advanced device provides ophthalmologists with optimized energy control and enhanced fluidic management, ensuring exceptional outcomes for every patient

Designed to Deliver Precision and Efficiency

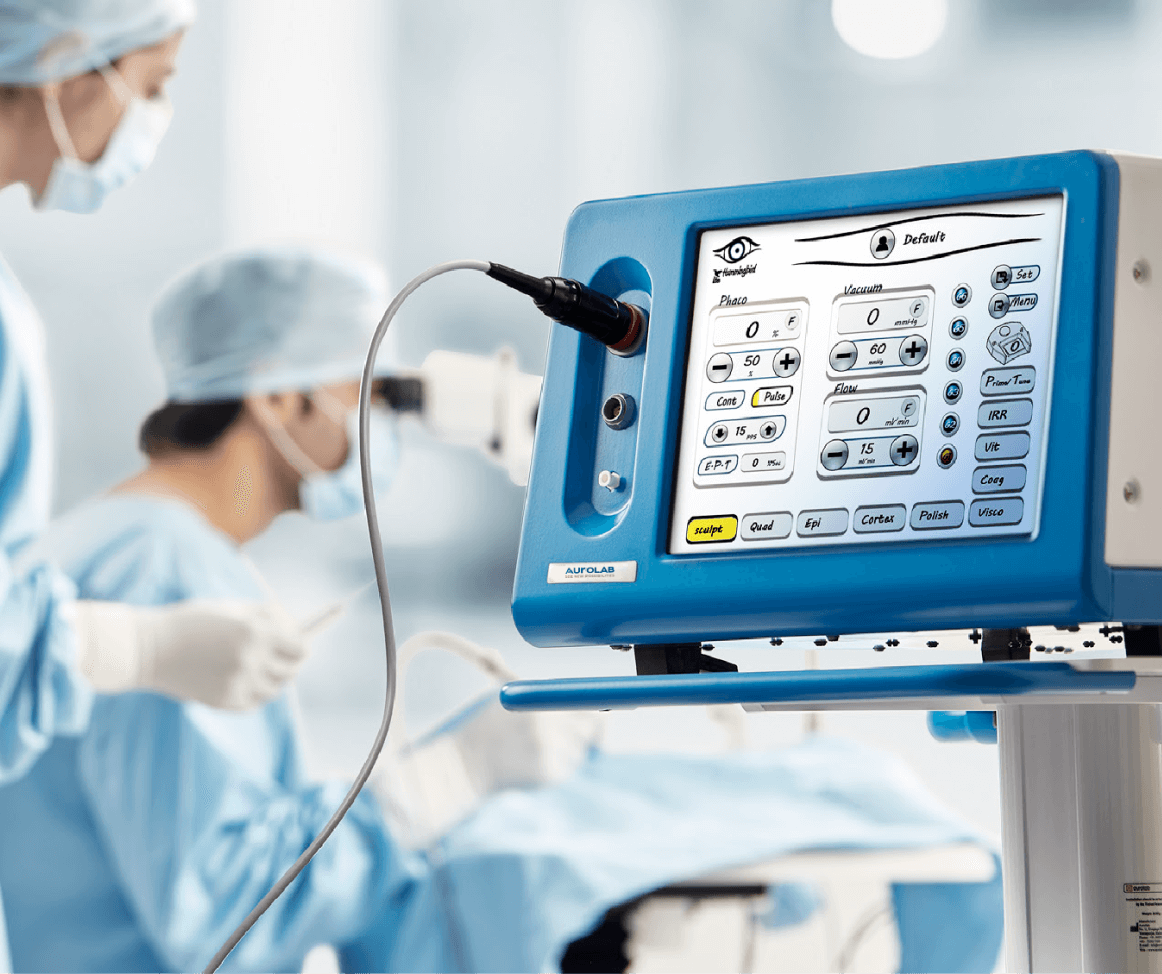

  • Intuitive, user-friendly and intelligent interface

  • Exceptional ergonomics with front panel connections, touch-screen controls.

  • Advanced tubing based fluidic system for improved chamber stability.

  • A German-made titanium handpiece that uses ultrasonic piezoelectric technology for superior performance.

  • A high-speed, 6-pinch roller Swiss motor peristaltic pump that provides efficient, comfortable, and controlled fluid transfer.

  • Multiple phaco modes specialized for various cataract grades.

  • Highly precise vacuum sensing system that aids accuracy with faultless feedback of IOP.

  • Rugged peristaltic, and multifunctional foot pedal that allows custom adjustments

  • Powerful Stroke length and multiple phaco modes support simple and hard cataract with reliable performance.

  • Disposable tubing with auto calibration sensor ensuring safety for every patient and procedure.

  • 23 gauge vitrectomy cutter is a single use guillotine cutter which runs on pneumatic air compressor. It can make up to 1200 cuts per minute. It is used with the separate irrigation handpiece.

hummingbird
Safety Features
Disposable Sensor & Tubings
Auto Venting
Extended irrigation
Benefits
Ensures patient safety. Delivers predictable outcomes
Helps avoid post occlusion surge
Chamber safety ensured with the extended irrigation and controlled inflow

The High Performance Phaco Partner

hummingbird

120 micron high stroke length

Industry highest, Hummingbird lite enables doctors with a stroke length of 120 micron strengths that facilitates excellent cutting efficiency to break the hard nucleus.

hummingbird

Optimal autotune frequency for every grade of cataract

Hummingbird Lite’s operating frequency of 38KHz to 42KHz, enables treatment customized to cataract hardness per patient, per eye, helping avoid complications.

hummingbird

Responsive and predictable surgical outcomes

The surgical platform is exceptionally quick to start up and ready to use just a few seconds after being switched on. Linear vacuum control, auto calibration sensor and tubing system helps manage excellent chamber stability, driving predictable performance.

hummingbird

Customizations for every surgeon. Control on every procedure

Hummingbird lite offers up to 10 Programmable Surgeon Settings and it gives easy access to setting up personalized parameters

hummingbird

Predictable and Contamination-Free with Disposable Tubing

At Aurolab, we prioritize safety, and it's evident in the design of Hummingbird Lite. Our use of disposable tubing guarantees a 100% contamination-free environment and maintains predictable vacuum pressure throughout the procedure.

In contrast, reusable tubing can lead to blood buildup, causing unpredictable surges and a higher risk of contamination. With Hummingbird Lite, you can trust in a safer surgical experience
