PHOENIX

phoenix

Power, Precision, Performance At Your Fingertips

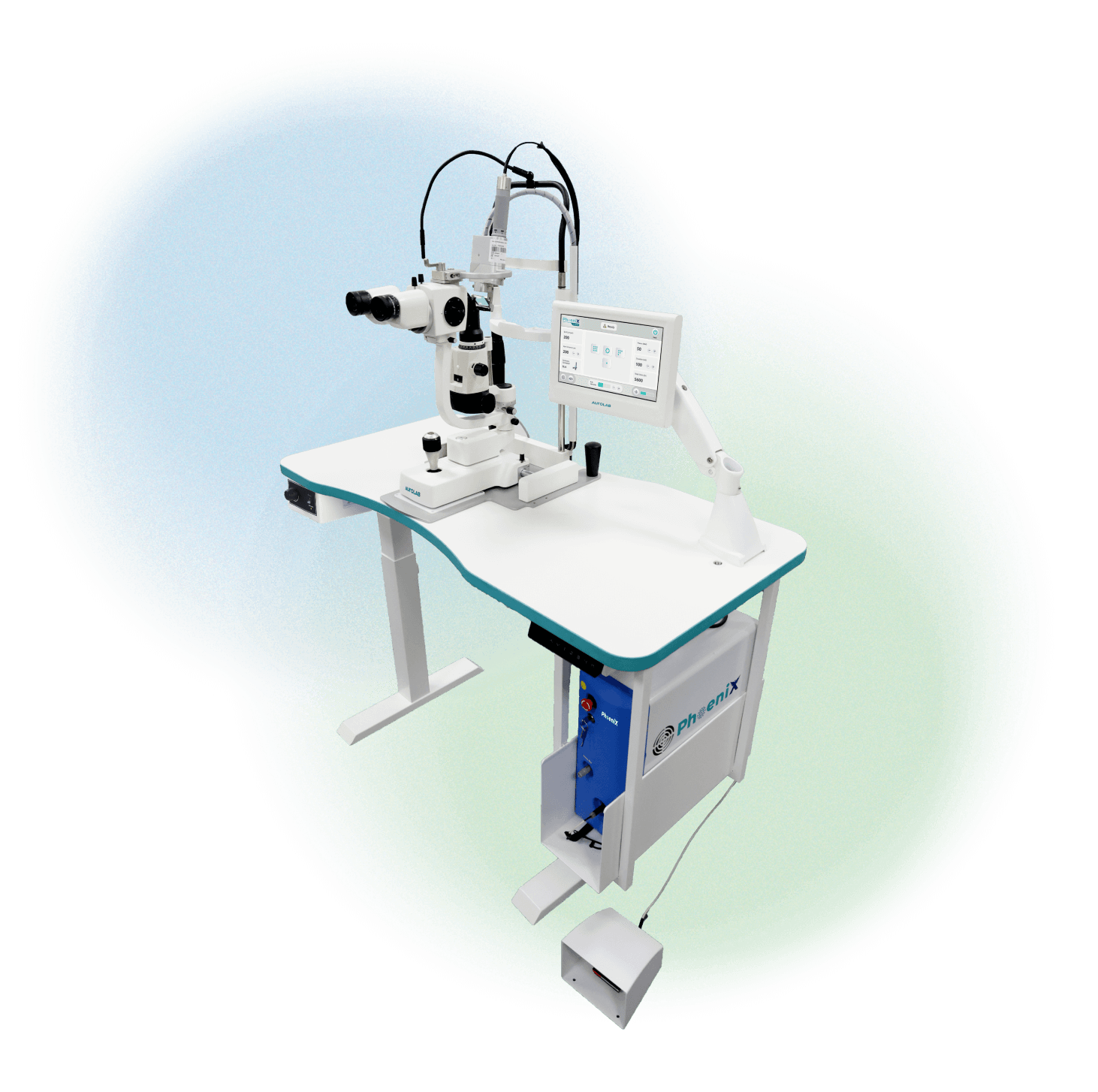

Aurolab is proud to introduce the Aurolab Phoenix, a cutting-edge Multispot Laser scanner designed to address the shortcomings of conventional PRP (Panretinal Photocoagulation). Experience improved outcomes, shorter treatment durations, and a patient-centric approach that enhanced comfort.

Our Aurolab phoenix has advanced laser technology offers flexibility to adapt to every patient’s need

  • Shortens Treatment Times

  • Multispot lasers allow for the simultaneous delivery of multiple spots in different pattern related to retinal areas.

  • Maximum Efficiency

  • Effective touch screen interface,semi-automated procedure with shorter pulse durations.

  • Minimizes Side Effects

  • Reduces patient discomfort, macular edema progression, and complications like vitreous haemorrhage.

  • Supports Selective Targeting

  • Precisely targets the retinal pigment epithelium leading to less scarring, minimizing photoreceptor loss and faster cell regeneration.

  • Safe green Wavelength (532-nm)

  • Uses safe 532-nm wavelength, making it suitable for both macular and peripheral treatments.

  • Ergonomic and easy use

  • Joystick, foot switch are comfort features built in for high control.

  • Maximizes conversion efficiencies

  • The laser minimizes heat generation on retina and choroid, reducing collateral thermal damage to healthy ocular tissues.

  • Three delivery system

  • The Multi-spot device has been designed to be compatible with Slitlamp adaptor for both multi-spot & single spot applications, Laser indirect ophthalmoscope & endo porbes used for single spot treatment.

  • In-Built Expert System (eXs)

  • Recommending the appropriate power to the surgeon.

phoenix
phoenix

Enhanced Efficiency, Excellent Targeting

  • Different varients of pre-programmed scan patterns.

  • Spot size, ranges from 100 to 500 µm.

  • Customizable power- Offers power range from 25 mw to 2000 mw.

  • Algorithm is tuned to give you golden standard precision and control.

  • Aurolab Phoenix enabled for swift response and real time control

Explore Tomorrow’s Horizons Of Diabetic Retinopathy Treatment

Aurolab Phoenix Green Laser technology is built on a foundation of proven performance. It’s predecessor has fired over 1 crore shots and is still going strong. A testament to it’s unparalleled durability.

Aurolab Multi-Spot Laser

Specification :
Clinical Properties Diabetic Retinopathy
Model Aurolab Phoenix
Spot Size 100-500 µm (with the step size of 100µm)
Spot Distance 200 µm - Fixed for all the Patterns
Wavelength Green : 532nm
Output Power 25 - 2000mW with the step-size of 25mW
Output Type Continuous Wave
Exposure 10 - 1000ms (single spot) with the step-size of 10ms,
10 - 80ms (multi-spot) with the step-size of 5ms
Pulse Duration 10 - 1000ms (single spot) with the Step-size of 10ms
Aiming Laser 635nm diode - < 1mW
Emission Pattern Single Square Matrix (2×2, 3×3, 4×4, 5×5) Circle Vertical Line, Horizontal Line Rectangle, Triangle Line
Dimensions Height: 145 mm | Width: 280 mm | Length: 315 mm
Weight 9 kg
Display 10.1 - inch Color LCD with Touchscreen Control
Cooling Thermo electric cooling (peltier) and air cooled
Power Supply AC 90 to 240 V, 50 / 60 Hz
Power Consumption Maximum 300W
phoenix

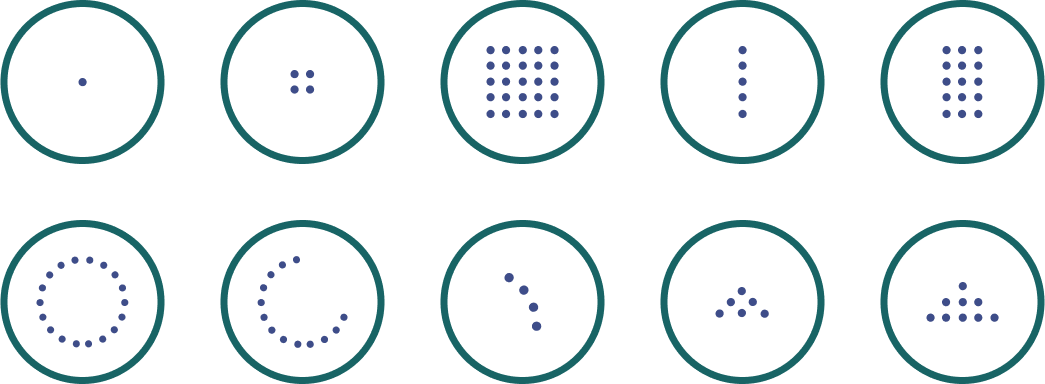

Patterns On Aurolab Phoenix
Multi-Spot Laser

Single Spot | Square Matrix | Verticle Line | Triple Line | Circle | Arc | Triangle

phoenix

Maximizing Treatment Outcomes

phoenix

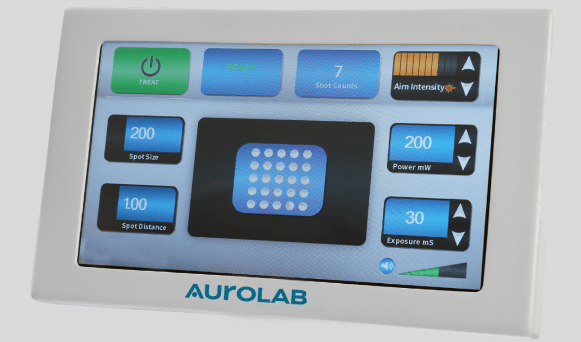

Intuitive Interface, User-Friendly Operation

  • All parameters in one screen for swift reference.

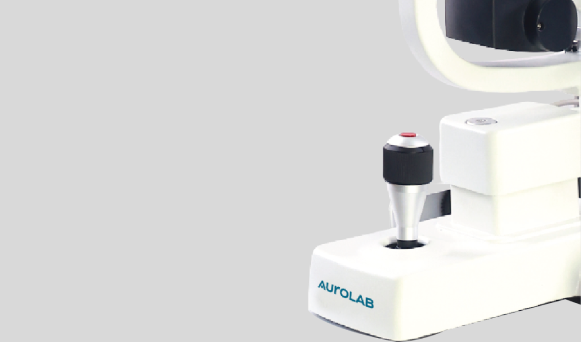

  • Highly responsive joystick operation for smooth treatment.

  • Controlled laser light activation.

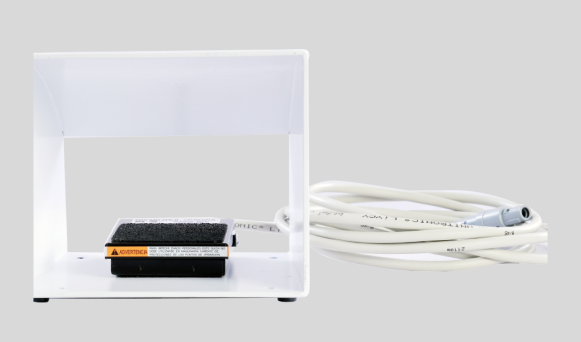

  • Easy operation and precise control with a joystick or footswitch

  • Custom positioned wide touch screen display

  • Optimum visibility even in dark room conditions.

phoenix
phoenix
phoenix

Safe For Doctors, Safe For Patients

  • True color laser safety filter in all delivery systems, promising safety to surgeons.

  • Heat diffusion technology reduces collateral thermal damage to healthy ocular tissues.

  • eXs assisted laser power and pulse duration optimize surgeon’s operation & patient’s vision outcomes.

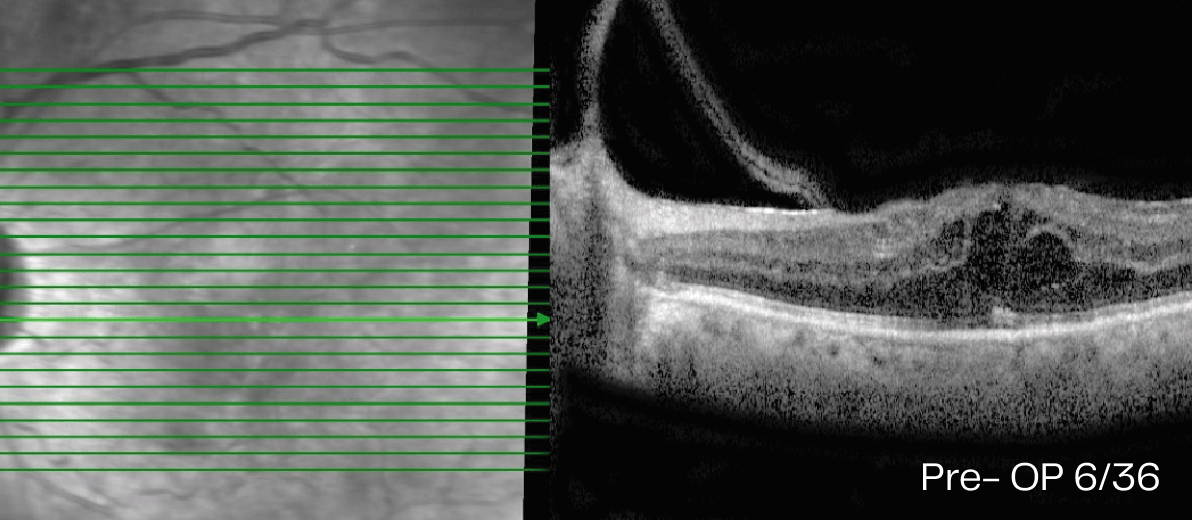

Before treatment

phoenix

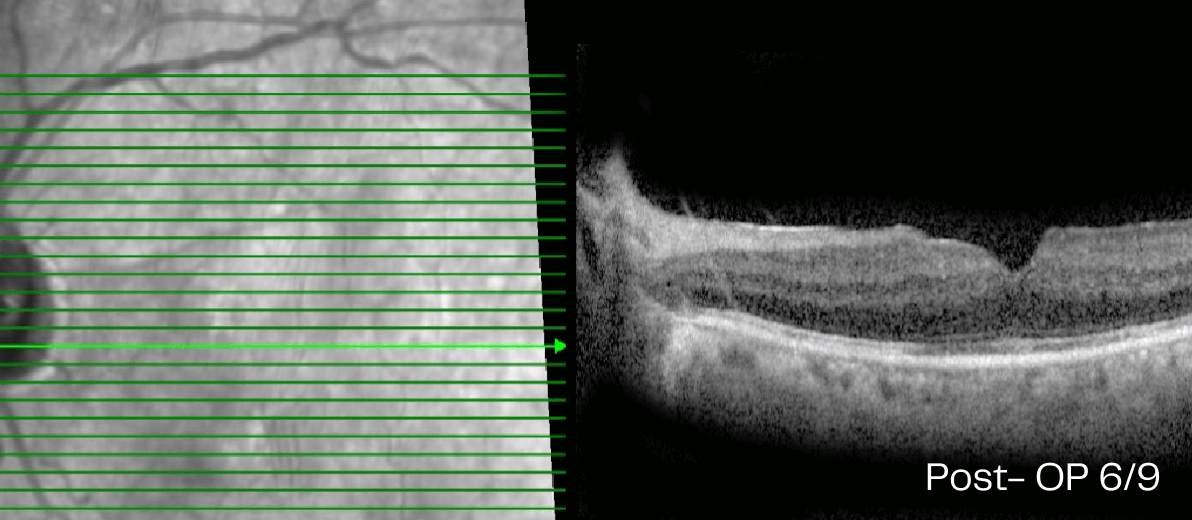

After treatment (6 months)

phoenix

Patient : Aged 52 yrs. with Type 2 DM for over 15 years, severe proliferative diabetic retinopathy with ERM (OU).

Integrated Design, Intelligent Performance

Compatible delivery system for Aurolab Phoenix.

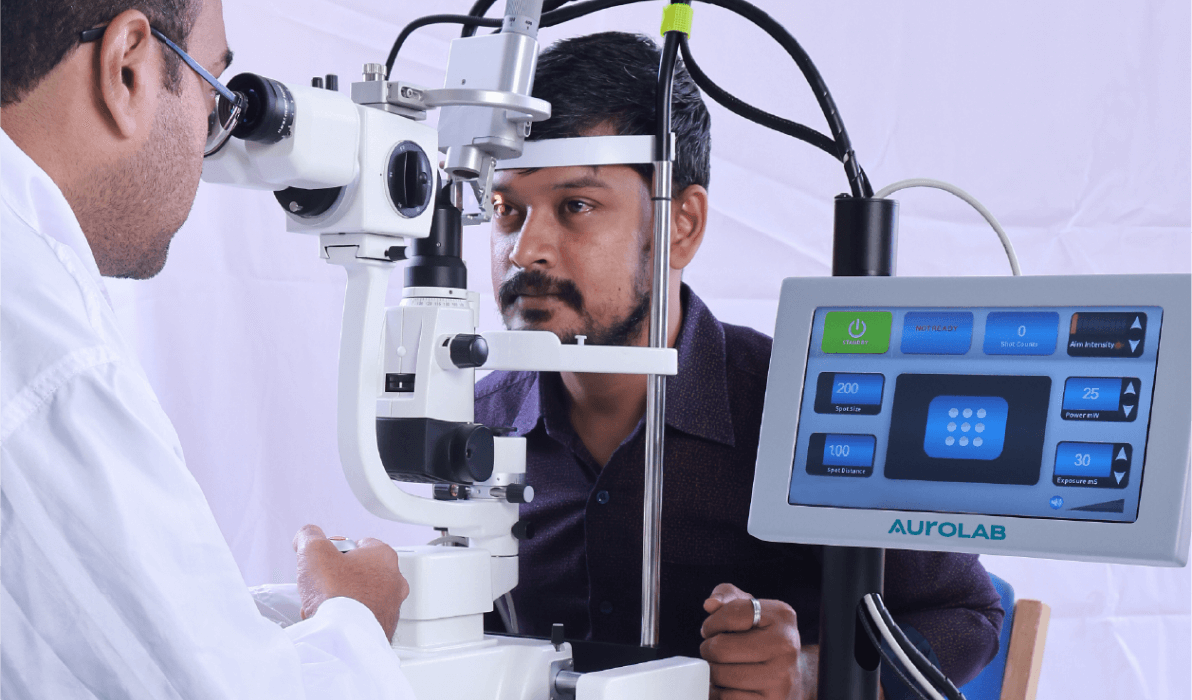

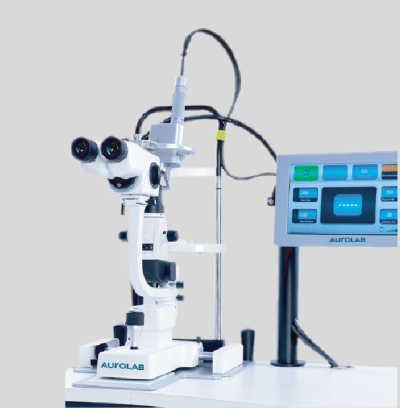

Slit Lamp With SLA

  • Safety

  • Clear laser, safety filter for surgeon’s eye protection.

  • Adaptable

  • to Hawk-i bottom illuminated (LED & Halogen) 5 step magnification Slitlamp

  • Standard Accessories

  • Fiber optic cable, Elbow rest, Dust Cover, LCD Arm & Console mount, specialized motorized table

phoenix
phoenix

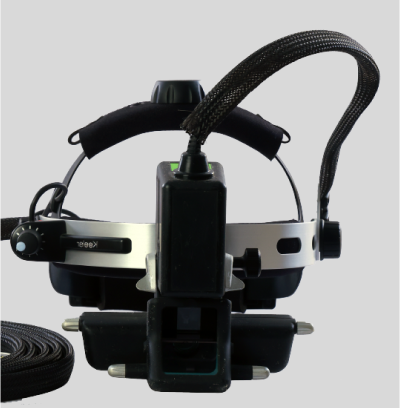

LIO (Laser Indirect Ophthalmoscope)

  • Indirect Ophthalmoscope

  • Keeler Vantage Plus Illumination

  • Working Distance

  • 280mm ±20% Safety Filter: Clear laser safety filter for surgeon’s eye protection.

  • Standard Accessories

  • Fiber optic cable (5m), Spare battery.

  • Wall mounted wireless charger.

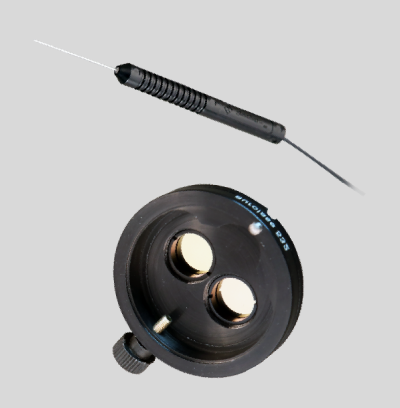

ENDOPROBES

  • Endoprobe gauge

  • 20 g, 23 g & 25 g

  • Variants

  • Straight, Angled & Directional.

  • Microscope safety filter

  • Microscope filters are also available as optional accessories with us.

phoenix
phoenix

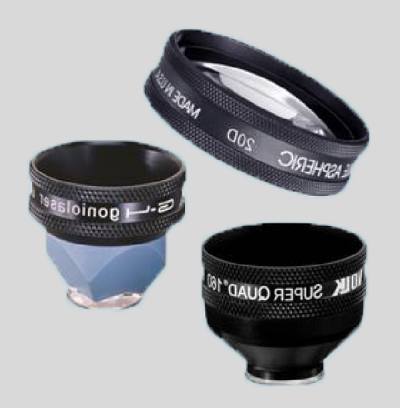

VOLK LENSES

  • Super quad 160, Area centralise, 90D, 20D, 3 mirror Gonio lenses & other lenses if needed.
